Wisechannel
Model:
29-1/2" 500/1000psi
37-1/2" 500psi
49-1/2" 500psi

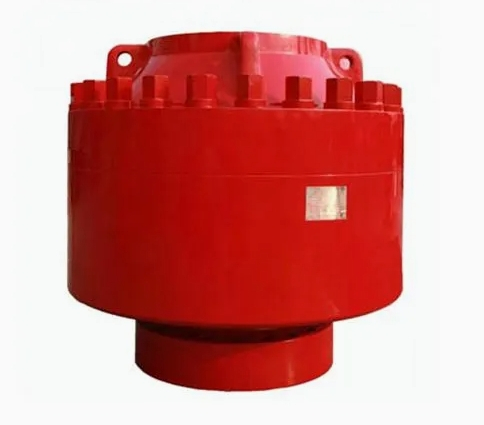

Diverter system consists diverter ball valves, diverter hose, diverter BOP and spool. Diverter system directs an uncontrolled flow
from a shallow zone to designated location at drilling rig. We provide separate control system for diverter valve operation in case
of rig control system failure. Diverter valve is hydraulic actuator operated and quick open / close type to handle shallow well kick
condition.
Standard: API-16A, ASME B16.47a-1998
Technical Specifications of Drilling Diverter:
| Model | Main bore mm(in) | Working pressure MPa(psi) | Operating pressureMPa | Connection type | Dimension mm | weight kg | Recommended bop type | ||
| Top | Bottom | Outside diameter | Height | ||||||
| FFZ75-3.5 | 749.3(29 1/2) | 3.5(500) | 8.4~10.5 | studded | fanged | 1910 | 1798 | 12607 | H06.00C |
| FFZ76-07 | 762 (30) | 7(1000) | 1805 | 1700 | 13866 | H31.00 | |||
| 29 1/2"-500 psi Diverter top&bottom connection: class 300 B16/A NPS30 R95 | |||||||||
| 30"-1000 psi Diverter top&bottom connection: class 300 B16/A NPS30 R95 | |||||||||
Detailed Photos
Model:
29-1/2" 500/1000psi
37-1/2" 500psi
49-1/2" 500psi
Diverter system consists diverter ball valves, diverter hose, diverter BOP and spool. Diverter system directs an uncontrolled flow
from a shallow zone to designated location at drilling rig. We provide separate control system for diverter valve operation in case
of rig control system failure. Diverter valve is hydraulic actuator operated and quick open / close type to handle shallow well kick
condition.
Standard: API-16A, ASME B16.47a-1998
Technical Specifications of Drilling Diverter:
| Model | Main bore mm(in) | Working pressure MPa(psi) | Operating pressureMPa | Connection type | Dimension mm | weight kg | Recommended bop type | ||
| Top | Bottom | Outside diameter | Height | ||||||
| FFZ75-3.5 | 749.3(29 1/2) | 3.5(500) | 8.4~10.5 | studded | fanged | 1910 | 1798 | 12607 | H06.00C |
| FFZ76-07 | 762 (30) | 7(1000) | 1805 | 1700 | 13866 | H31.00 | |||
| 29 1/2"-500 psi Diverter top&bottom connection: class 300 B16/A NPS30 R95 | |||||||||
| 30"-1000 psi Diverter top&bottom connection: class 300 B16/A NPS30 R95 | |||||||||
Detailed Photos
